Diesel Fired Hot Water Heating for Dutch Barges

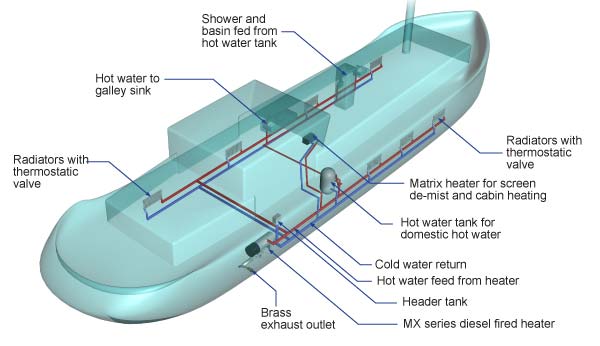

Typical Installation
The heater is normally fitted in the engine room.. The heater will draw diesel fuel from the main fuel tank via the Mikuni fuel pump. The Mikuni water pump circulates the hot water around the boat to feed radiators or finrads to provide central heating plus hot water via a calorifier to provide hot water to the galley, bath or shower.
A 22mm 2 pipe system should be installed with 'T' off 15mm to the radiators to ensure good water flow through the heater.
MX60 Diesel Heater
The MX60 is a compact 7kw water heater with a 3.5kw half heat facility. A sturdy unit which has proved itself to be extremely reliable and economical in operation.
7kw output with 3.5kw half setting
Multiple safety features
Economical and quiet
Exhaust and CA silencers
Self diagnostic fault finding system
Microprocessor controlled
Optional timer control
MXA110 Diesel Heater
The MXA110 is an an advanced pressure jet burner very clean burning and efficient operation.
12.8kw output
Electronic spark ignition
Economical and quiet
Microprocessor electronics
Self diagnostic fault finding
Multiple safety features
